SH100 (TRAILER)

Free rolling trailer tire. Tread pattern geometry is optimized to deliver steering and grip on wet roads. Exceptional carcass structure provides outstanding braking performance.

Safe and balanced performance, high durability, minimizes fuel consumption Enhances reatreadability for saving cost and environment Offer maximum grip and short braking distances

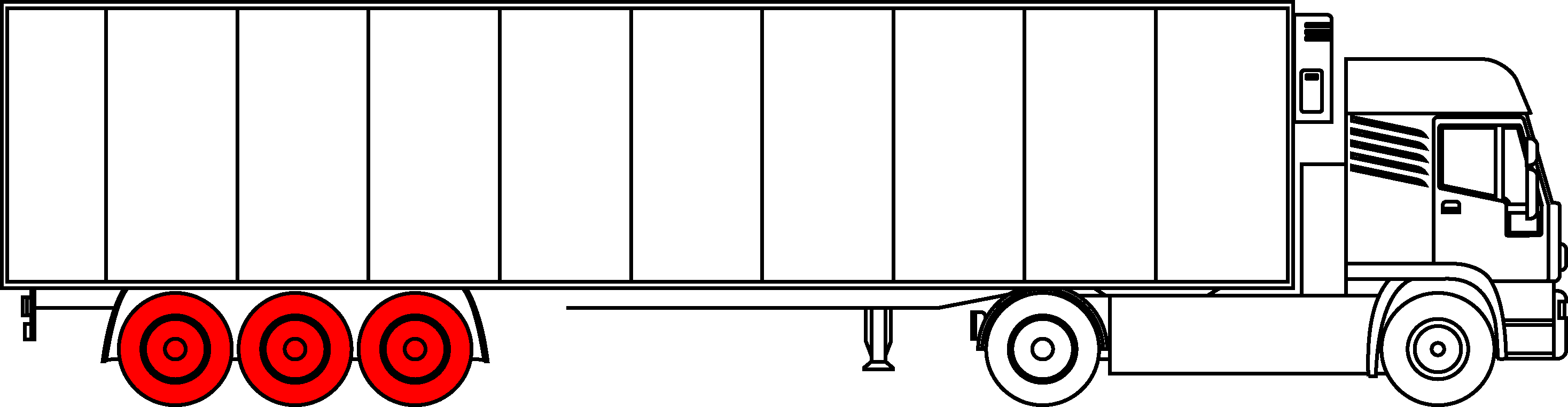

POSITION / APPLICATION

AVAILABLE SIZES

Tire Size	Speed Index	Load Index	Max. Load per Tire Single	Inflated Pressure	Recom. Rim Width (in.)	Approved Rim Width (in.)	Section Width	Outer Diameter	M+S	Snow Flake	Fuel Efficiency	Wet Grip	DB	External Rolling Noise	Label
245/70 R 19.5 141/140J	J	141/140	5150	125	7.5	6.75	247.5	843.2	Yes	Yes	D	B	69	A	LABEL
265/70 R 19.5 143/141J	J	143/141	5450	112	7.5	6.75	263.6	865.8	Yes	Yes	D	B	69	A	LABEL
285/70 R 19.5 150/148J	J	150/148	6700	130	8.25	7.50 , 9.00	286	897	Yes	Yes	D	B	69	A	LABEL

All
195"

245/70 R 19.5 141/140J

Tire Size	245/70 R 19.5 141/140J
Speed Index	J
Load Index	141/140
Max. Load per Tire Single	5150
Max. Speed	100
Inflated Pressure	125
Recom. Rim Width (in.)	7.5
Approved Rim Width (in.)	6.75
Section Width	247.5
Outer Diameter	843.2
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	B
DB	69
External Rolling Noise	A
Label	LABEL

265/70 R 19.5 143/141J

Tire Size	265/70 R 19.5 143/141J
Speed Index	J
Load Index	143/141
Max. Load per Tire Single	5450
Max. Speed	100
Inflated Pressure	112
Recom. Rim Width (in.)	7.5
Approved Rim Width (in.)	6.75
Section Width	263.6
Outer Diameter	865.8
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	B
DB	69
External Rolling Noise	A
Label	LABEL

285/70 R 19.5 150/148J

Tire Size	285/70 R 19.5 150/148J
Speed Index	J
Load Index	150/148
Max. Load per Tire Single	6700
Max. Speed	100
Inflated Pressure	130
Recom. Rim Width (in.)	8.25
Approved Rim Width (in.)	7.50 , 9.00
Section Width	286
Outer Diameter	897
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	B
DB	69
External Rolling Noise	A
Label	LABEL
