SH100

SH100 pattern is suitable to use on all axles on buses and at steer or non-powered second axle on trucks. Tread pattern geometry is optimized to deliver steering and grip on wet roads. Exceptional carcass structure provides outstanding braking performance.

Safe and balanced performance, high durability, minimizes fuel consumption Enhances reatreadability for saving cost and environment Offer maximum grip and short braking distances

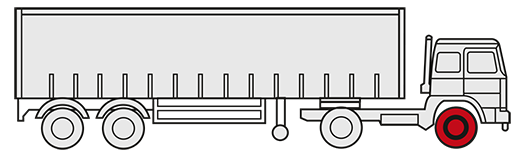

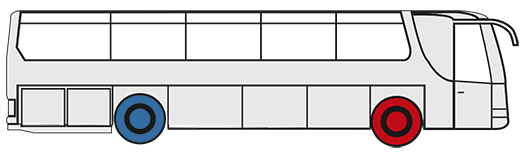

POSITION / APPLICATION

AVAILABLE SIZES

Tire Size	Speed Index	Load Index	Max. Load per Tire Single	Inflated Pressure	Recom. Rim Width (in.)	Approved Rim Width (in.)	Section Width	Outer Diameter	M+S	Snow Flake	Fuel Efficiency	Wet Grip	DB	External Rolling Noise	Label
245/70 R 19.5 136/134M	M	136/134	4880	123	7.5	6.75	247.5	843.2	Yes	Yes	D	B	69	A	LABEL
265/70 R 19.5 140/138M	M	140/138	5000	112	7.5	6.75	263.6	865.8	Yes	Yes	D	B	69	A	LABEL
285/70 R 19.5 146/144L	L (M)	146/144(145/143)	6000(5800)	130	8.25	7.50 , 9.00	285	897	Yes	Yes	D	B	69	A	LABEL
295/80 R 22.5 152/148M	M	152/148	7100	123	9	8.25	303	1056	Yes	Yes	D	A	69	A	LABEL
315/80 R 22.5 154/150M	M(L)	154/150(156/150)	7500 (8000)	120	9	9.75	311	1085	Yes	Yes	D	A	70	A	LABEL

All
195"
225"

245/70 R 19.5 136/134M

Tire Size	245/70 R 19.5 136/134M
Speed Index	M
Load Index	136/134
Max. Load per Tire Single	4880
Max. Speed	130
Inflated Pressure	123
Recom. Rim Width (in.)	7.5
Approved Rim Width (in.)	6.75
Section Width	247.5
Outer Diameter	843.2
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	B
DB	69
External Rolling Noise	A
Label	LABEL

265/70 R 19.5 140/138M

Tire Size	265/70 R 19.5 140/138M
Speed Index	M
Load Index	140/138
Max. Load per Tire Single	5000
Max. Speed	130
Inflated Pressure	112
Recom. Rim Width (in.)	7.5
Approved Rim Width (in.)	6.75
Section Width	263.6
Outer Diameter	865.8
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	B
DB	69
External Rolling Noise	A
Label	LABEL

285/70 R 19.5 146/144L

Tire Size	285/70 R 19.5 146/144L
Speed Index	L (M)
Load Index	146/144(145/143)
Max. Load per Tire Single	6000(5800)
Max. Speed	120 (130)
Inflated Pressure	130
Recom. Rim Width (in.)	8.25
Approved Rim Width (in.)	7.50 , 9.00
Section Width	285
Outer Diameter	897
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	B
DB	69
External Rolling Noise	A
Label	LABEL

295/80 R 22.5 152/148M

Tire Size	295/80 R 22.5 152/148M
Speed Index	M
Load Index	152/148
Max. Load per Tire Single	7100
Max. Speed	130
Inflated Pressure	123
Recom. Rim Width (in.)	9
Approved Rim Width (in.)	8.25
Section Width	303
Outer Diameter	1056
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	A
DB	69
External Rolling Noise	A
Label	LABEL

315/80 R 22.5 154/150M

Tire Size	315/80 R 22.5 154/150M
Speed Index	M(L)
Load Index	154/150(156/150)
Max. Load per Tire Single	7500 (8000)
Max. Speed	130(120)
Inflated Pressure	120
Recom. Rim Width (in.)	9
Approved Rim Width (in.)	9.75
Section Width	311
Outer Diameter	1085
M+S	Yes
Snow Flake	Yes
Fuel Efficiency	D
Wet Grip	A
DB	70
External Rolling Noise	A
Label	LABEL
