Drive axle truck bus tire with closed shoulder design. It provides balanced drive, longevity and resistance to uneven wear. (US. MARKET ONLY)
Ensures equal tread pressure distribution and even wear from shoulder to center
Provides equal pressure distribution
Disperses water effectively and provides long tread life

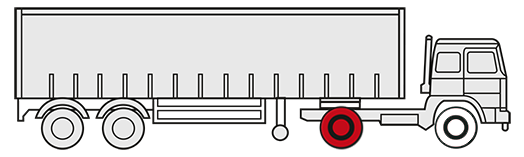

POSITION / APPLICATION
AVAILABLE SIZES
| Tire Size | Speed Index | Load Index | Max. Load per Tire Single | Ply | Inflated Pressure | Recom. Rim Width (in.) | Approved Rim Width (in.) | Section Width | Outer Diameter | Label |
|---|---|---|---|---|---|---|---|---|---|---|
| 295/75 R 22.5 146/143L | L | 146/143 | 3000 | 16PLY | 120 | 9 | 8.25 | 289.9 | 1027.5 | |
| 295/75 R 22.5 144/141M | M | 144/141 | 2800 | 14PLY | 110 | 9 | 8.25 | 297.3 | 1028.5 | |
| 11 R 22.5 146/143L | L | 146/143 | 3000 | 16PLY | 120 | 8.25 | 7.50 | 292 | 1069.5 | |
| 11 R 24.5 149/146L | L | 149/146 | 3250 | 16PLY | 120 | 8.25 | 7.50 | 289 | 1119.6 |
*US MARKET ONLY
